At present, Deoxidized phosphorus copper(TP2), Silver-bearing copper(CuAg 0.1) and Cu-Cr-Zr are normally selected as the material to produce copper mould tubes.
Copper Mould Tubes Mould Material
TP2 is selected by most of the steel plants.It shows excellent heat-proof and anti-fatigue property under high temperature and it has good processing property.
Adding 0.08%-0.12% silver during copper ingots melting will increase the re-crystallization temperature of copper by 100℃,which will increase the heat stress and anti-abrasive property of copper mould tube interior surface,showing better heat-resistant property than TP2.
Cu-Cr-Zr is a kind of copper alloys which can be normalized by time.It has excellent mechanical property under both room temperature and high temperature.It has high heat conductivity,melting point,anti-fatigue and anti heat stress properties.Their outstanding features make it different from the previous copper alloys.It combines all good properties together.But compared with other copper alloys,Cu-Cr-Zr is difficult to be formed with higher products costs.

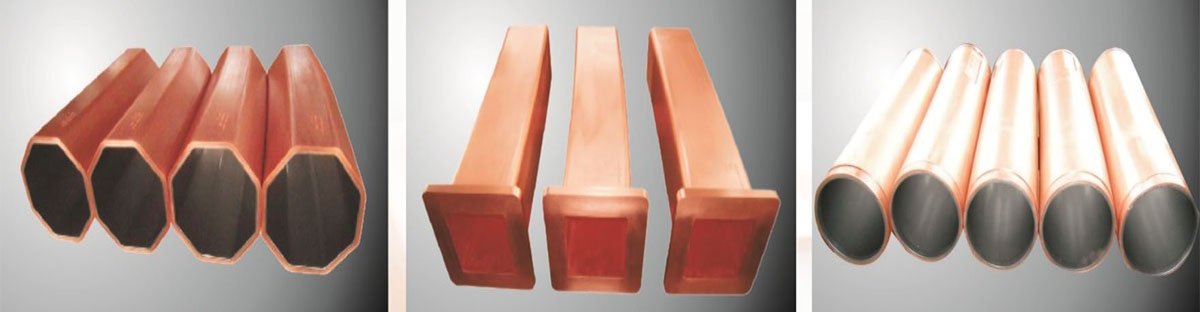

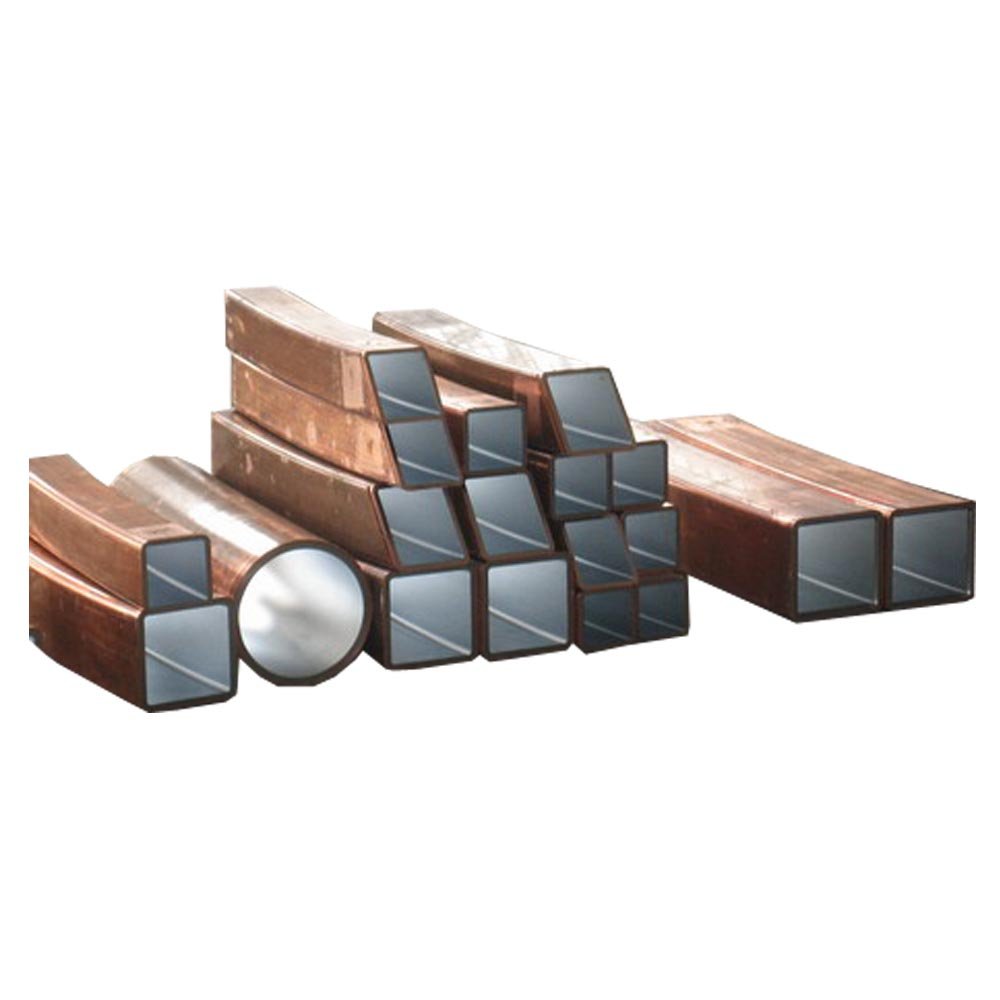

Copper Mould Tubes Type
 |
 |

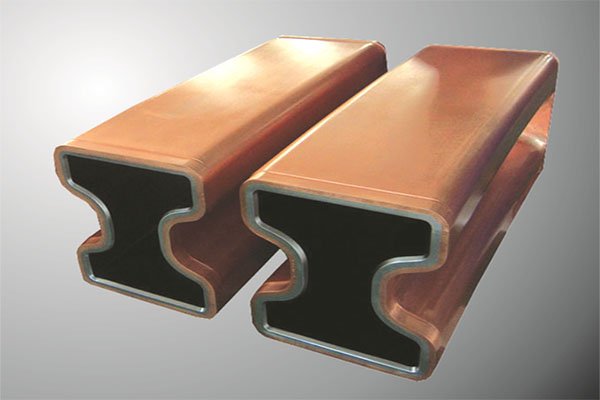

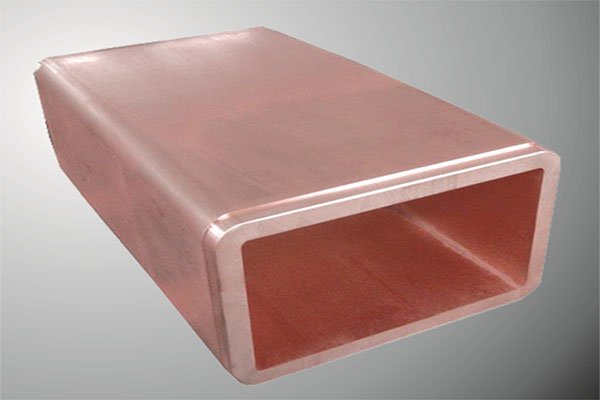

| Beam Black Copper Mould Tubes | Square Copper Mould Tubes |
 |
 |

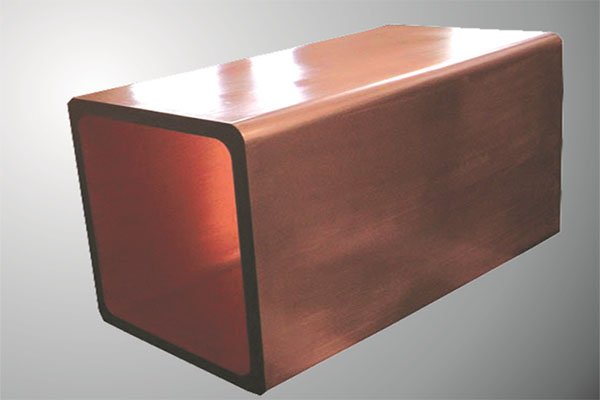

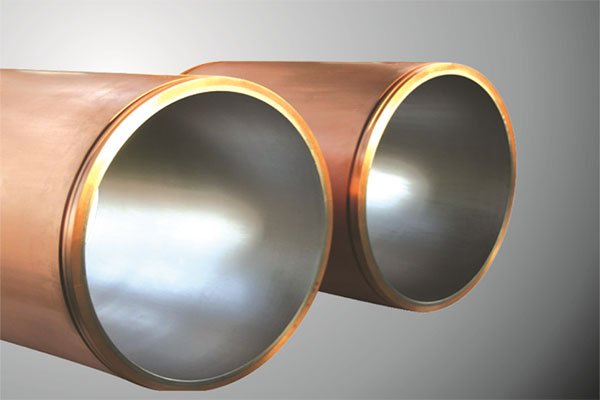

| Round Copper Mould Tubes | Rectangular Copper Mould Tubes |

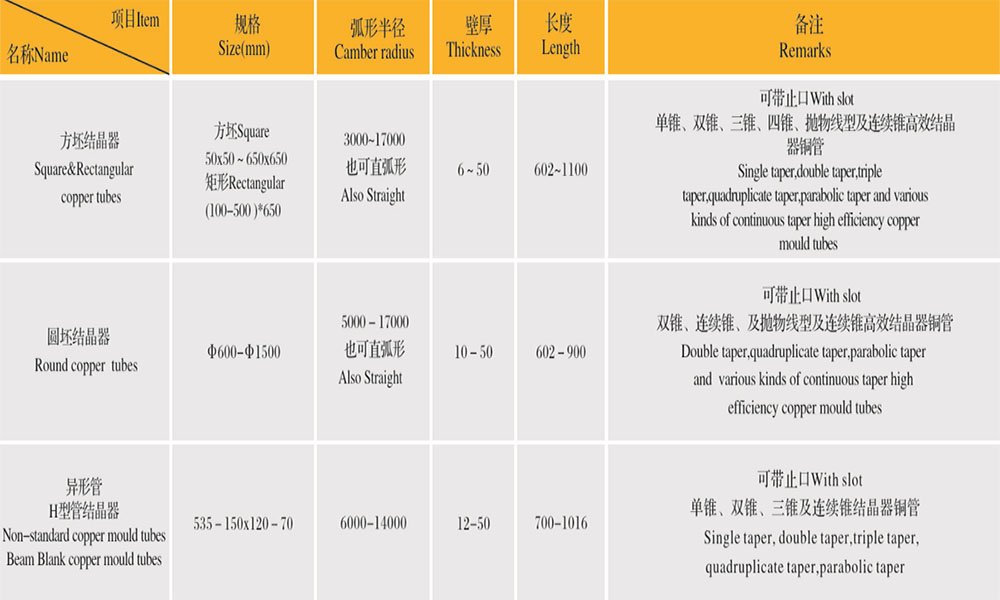

Copper Mould Tubes Parameter
